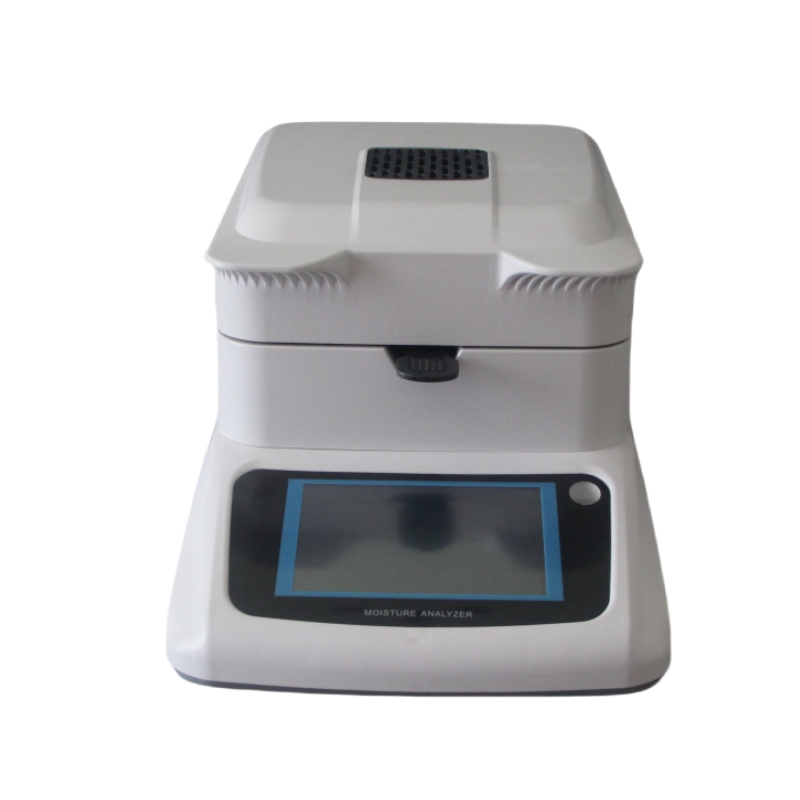

QT-SFY-1203CN High Precision Halogen Moisture Analyzer

Introduction to the instrument:

The fast moisture tester is suitable for research institutes, universities, inspection institutes, measurement institutes, enterprises and institutions, and is widely used in various industries such as plastic particles, food, sludge, tea, corn feed, battery powder, metal powder, dry goods, etc., to quickly dry the sample input to measure the solid content moisture value. The moisture content of the sample is determined by the thermogravimetric method. It is composed of weighing unit and heating unit. It meets the quality control and production needs of the food, pharmaceutical, chemical and other industries. Customer benefits: Accurate results through accurate weighing and temperature control; Intuitive operation with a step-by-step user guide; The robust construction ensures the durability of the instrument.

Main features:

1, 5 inch programmable color touch screen, an interface directly displays moisture %, solid content %, test temperature and other information, built-in guided Chinese operation and voice prompts, operators can follow the graphical guidance to gradually complete the work flow, and can adjust the size of the sound according to personal habits or directly close;

2, using imported German HBM weighing sensor, high precision zero temperature drift;

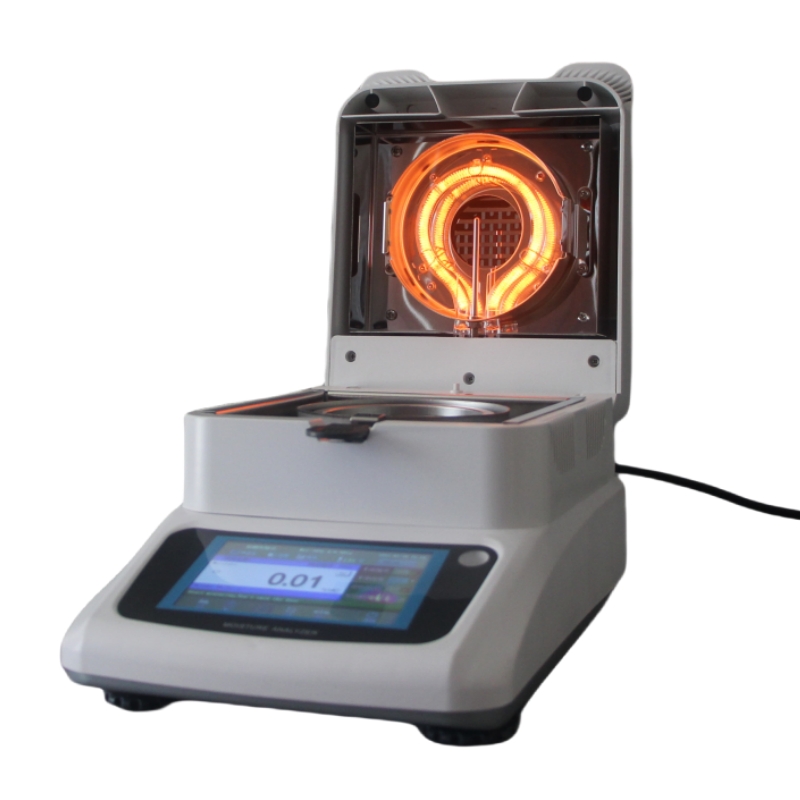

3, 500W efficient halogen ring lamp, fast heating, waterproof and explosion-proof, the heating chamber adopts pure stainless steel chamber cover, so that the sample is heated more evenly;

4, using PT100 temperature sensor, accurate temperature control, with waterproof anticorrosion and high temperature resistance;

5, rich data processing function, can be customized to add 100 test methods, can store 100 water results and average;

6, the built-in database can save 2000 audit tracking data, if the optional U disk function, when the U disk inserted in the instrument tracking data will be updated to the U disk in real time, can save countless data.

7, built-in RS232 interface, can be connected to thermal printer, label printer or computer, you can also choose USB interface

8, improve security through user management, distinguish users by setting login permissions and have automatic locking function. The pre-configured main interface reduces errors and increases efficiency and security. Supports the setting of multi-user operations (three-level rights management), each user operation rights can be assigned by the administrator. The administrator has the highest authority and can operate all functions of the instrument.

9, instead of the national standard oven method, the way is very wide, suitable for various industries of moisture content test and solid content test.

10, no need to install and debug, need training, need cumbersome process, box can be used; The real-time curve of the test process is displayed, and the moisture change is visually observed. Rich data display, can display curves, time, real-time temperature, moisture, solid content; Automatic measurement, measurement process without care, measurement alarm reminder.

• Sensor：Imported from Germany HBM
• Heating source：Halogen lamp (ring 450w)
• Heating method：Gentle, standard, fast
• Shutdown method：Automatic stop, manual stop, timed stop
• Result display：Test temperature, test time, moisture content, solid content, weight after drying, dynamic curve, moisture regain, solid content, weight loss, dry weight, test method, sample name, maximum value, minimum value, average value
• Data storage：100 groups
• User management：Password protected, multiple users, automatic lock
• Shutdown standards：Freely definable
• Sample disk diameter：Φ90mm [Stainless steel material]
• Heating temperature range：40-200 ° C (interval 1 ° C) (up to 230 ° C can be customized)
• Monitor：5 "touch screen display
• Communication interface：Standard RS232 communication interface, can be connected to printers, PCS and other peripheral devices, can be customized USB
• Product size：Length width height 220×340×210mm net weight 3.8kg
• Outer box size：Length width height 430×290×330mm gross weight 4.8kg
• Standard configuration：main machine*1, stainless steel sample plate*1, tripod support*1, heat plate*1, calibration weight*1, certificate*1, manual*1
