Metal material testing machine series

Product technical parameters:

Machine description:

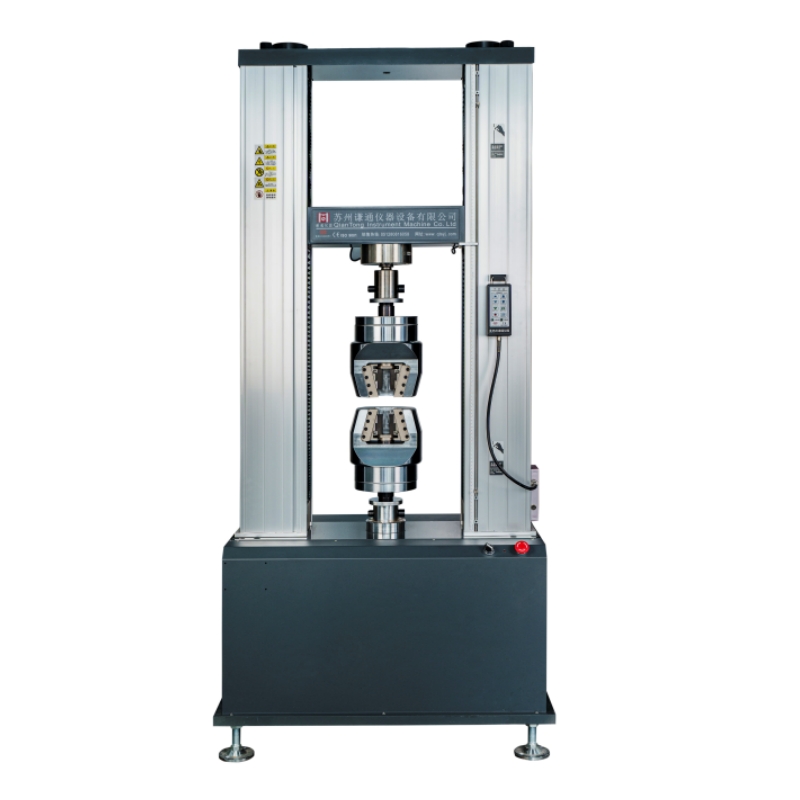

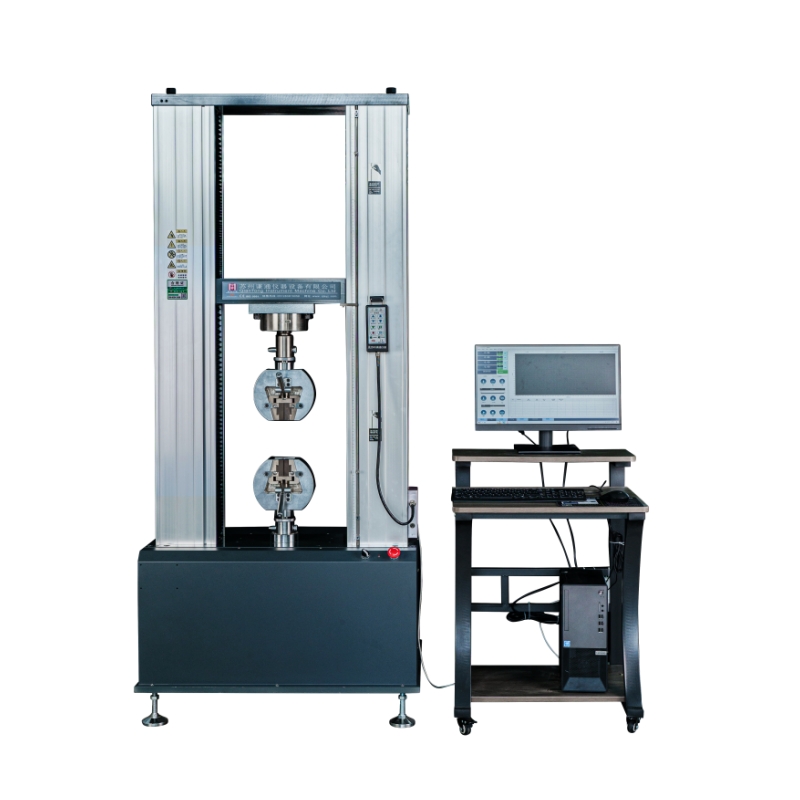

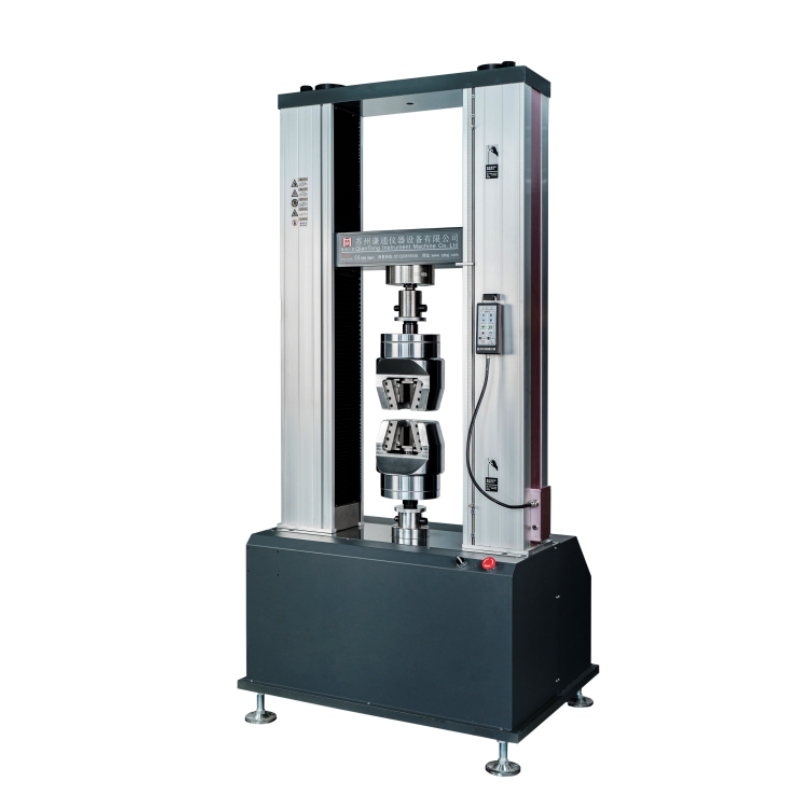

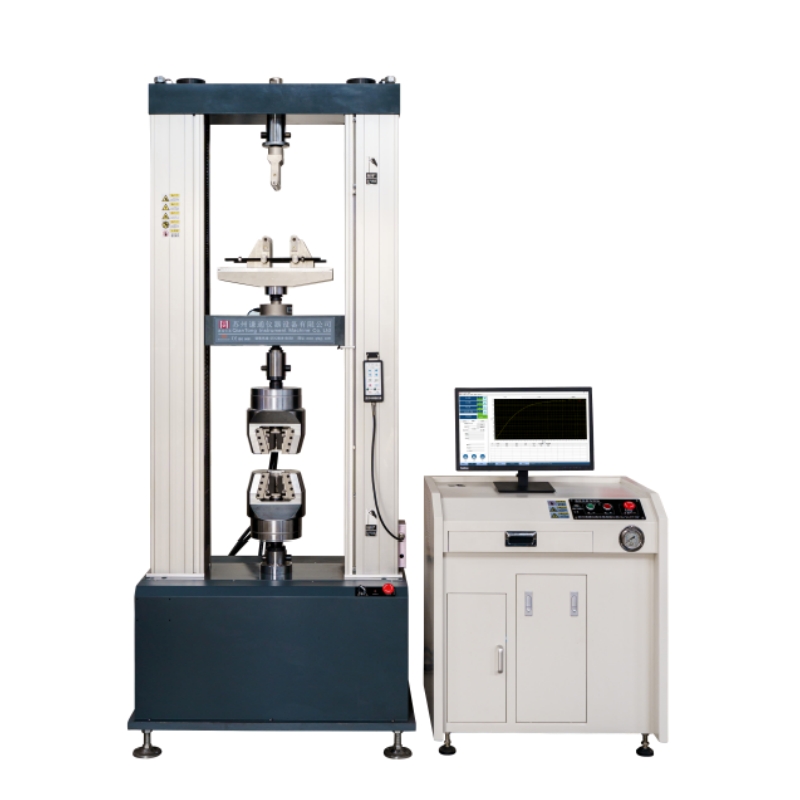

QT-6130S servo universal material testing machine adopts full digital force, displacement, speed three closed-loop control, adopts Taiwan AC servo motor and servo control drive system, with precision gearbox and Taiwan precision ball screw transmission, in order to achieve the best effect of transmission efficiency and sex noise ratio.

This machine is mainly used to test the physical properties of metal and non-metal material products, such as tensile, compression resistance, stripping, tearing, bending resistance, three-point bending resistance, shearing resistance. At the same time, it can be tested and data processed according to GB, ISO, JIS, ASTM, DIN and various standards provided by users. Widely used in automotive parts, fasteners, aerospace, wire and cable, rubber plastics, paper packaging and other industries of material inspection and analysis. It is the testing equipment required by scientific research institutes, colleges and universities, industrial enterprises, technical supervision and commodity inspection arbitration.

Control and data processing software Features:

1. Advanced chip integration technology, professionally designed data acquisition and amplification system, with high integration, stable and reliable, easy to use and other advantages. The control software can automatically obtain test data such as tensile strength, yield strength, breaking strength, elastic modulus, elongation, etc. Open formula editing can automatically calculate the force, stress, displacement, deformation and other data results at any specified point in the test process. The control and data processing of the test process meet the requirements of the corresponding national standards for metal materials and non-metal materials.

2. Control mode: fixed speed, positioning, fixed load, fixed load increase rate, fixed stress, fixed stress increase rate, fixed strain, fixed strain increase rate and other control modes are optional;

3. Automatic zero clearing: After the test starts, the measuring system automatically adjusts to zero;

4. Automatic shift: automatically switch to the appropriate range according to the load size to ensure the accuracy of the measurement data;

5. Automatic storage: automatic storage of test data and test conditions to eliminate data loss caused by forgetting to save;

6. Batch test: for the samples with the same parameters, a batch of tests can be completed successively after one setting;

7. Display mode: data and curve dynamic display with the test process;

8. Curve traversal: After the test is completed, the curve can be re-analyzed and the data corresponding to each point on the test curve can be found with the mouse;

9. Curve selection: stress-strain, force-displacement, force-time, displacement-time and other curves can be selected for display and printing;

10. Unit switching: force unit: (g, kg, N, lb), stress unit: (kg/mm2, N/mm2, Mpa, lbf/in2), displacement unit: (m, mm, in);

11. Test report: The test report can be programmed and printed in the format required by users, and can be exported to EXCEL files;

12. Security protection: When the maximum load exceeds 2 ~ 10%, automatic security protection is realized;

13. It can automatically detect and calculate the mechanical properties of the sample, and can also manually intervene in the analysis process to correct the automatic analysis results according to the requirements of relevant standards to improve the accuracy of the data;

Standard accessories:

1. Load sensor: American high precision sensor 300kN: 1 pcs

2. Test software: 64-bit test motherboard + English test software: 1 set

3. Control motor: Taiwan Delta B2 servo drive + motor: 1 set

4. Deceleration system: Taizhou Jiaoxing precision reducer: 1 pcs

5. Transmission screw: Taiwan TBI precision ball screw: 2 pcs

6. Test computer: HP Business Computer (4G RAM) + HP printer: 1 set

7. Test fixture: Develop test fixture according to customer sample: 1 set

8. Random documents: machine specifications, calibration data, warranty, certificate, packing list: 1 for each

Standards implemented by this equipment:

1. Testing machine implementation standards: electronic universal testing machine GB/T 16491-1996, JJG475-2008;

2. General test standard: GB/T CNS ASTM ISO DIN JIS En;

Installation and commissioning:

Guide customers to install products, debug products, and be responsible for technical guidance, provide basic drawings, product size, weight, etc.

• Maximum test force：300kN
• Accuracy level of testing machine：0.5
• Test force measurement range：2%-100% FS
• The relative error of the test force indication value：within ±0.5% of the indication value
• Resolution of the test force：1/±500000 of the maximum test force (the whole resolution is unchanged)
• Relative error of displacement indication value：within ±0.5% of indication value
• Displacement resolution：0.0005mm
• Force control rate adjustment range：0.1-2%FS/S
• Relative error of force control rate：within ±0.5% of the set value
• Beam speed adjustment range：0.05-200mm /min
• Relative error of beam speed：within 0.5% of the set value
• Constant force, constant deformation, constant displacement ：0.5%--100%FS
• Constant force, constant deformation, constant displacement ：set value <10%FS, within ±0.5% of the set value
• Maximum drawing stroke：1100mm
• Effective stretching space (net space)：about 680mm
• Effective test width：420*420mm
• Main machine dimensions：950*620*2050mm
• Power supply：380V 50Hz 4.5kw
• Host weight：about 1100kg
