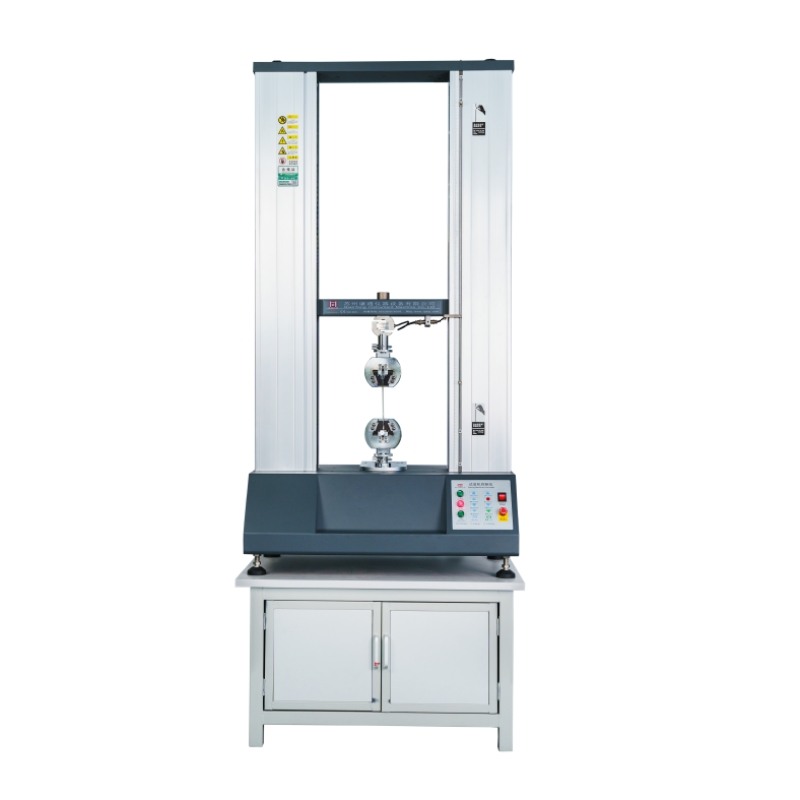

QT-6201S 20KN Servo Universal Material Testing Machine

This machine is mainly used to test various mechanical properties of products and materials, can detect tensile strength, yield strength, compressive strength, shear strength, elastic modulus, elongation and other data

+86 0512-80816058

Product introduction

Product technical parameters：

The machine specification：

QT-6201S bench-top servo universal material testing machine is commonly applied in material analysis in Auto-parts, fastener, Aerospace, cable and wire, plastic and rubber, paper packing industries. It adopts full digital power, displacement and speed three closed loop control, using AC motor and speed controller, with Taiwan precision worm gear reducer and Taiwan TBI precision screw drive to achieve the transmission efficiency and signal-to-noise ratio of the best effect.

Tester is used to test physical property of elongation, compression, peeling, tearing bending, 3-point bending, shearing of metallic and non-metallic material. It can be customized to meet GB, ISO, JIS, ASTM, DIN requirement and the standard provided by client to test and data processing.

It is testing equipment which is needed by scientific research institutes, universities, industrial enterprises, technical supervision, inspection and arbitration departments.

Features of control and data processing system:

1. With advanced chipping technology and professionally designed data gathering and amplifying system，the tester is highly integrated ，reliable and convenient. Control software automatically derives data of tensile strength, yield strength, fracture strength, modulus of elasticity, elongation. The open formula edition function allows automatic calculation of force, tension displacement deformation at any designated point. The standard in the process of control and data processing meet national requirement for testing metallic material and non-metallic material.

2. Control method: fixed speed, fixed displacement, fixed loading, fixed load increasing rate，fixed tension, fixed tension increase rate.

3. Automatically resetting: After the test begins, measuring system automatically reset to zero.

4. Automatic shifting: automatically changes range when load changes to make sure precise collection of data.

5. Automatic saving: testing data and testing condition are automatically stored to avoid data loss caused by forgetting saving.

6. Batch testing: for specimen with same setting, batch test can be performed after setting the test sequence.

7. Display mode: data and curve are presented while testing.

8. Curve display: after testing, it is possible to revisit the curve to analyze. Move your mouse on the curve to find relative data at each point.

9. Curves: parameters：stress-strain, force-displacement, force-time, displacement-time results are displayed and printable.

10. Parameters: Force parameters（g、kg、N、lb）

Stress parameters（kg/mm2、N/mm2、Mpa、lbf/in2）

Displacement parameters （m、mm、in）

11. Test report: test reports are edited and printed according to the desired format by client and can be output as Excel files.

12. Safety protection : safety mechanism is triggered when overloading is above 2～10%

The tester is able to automatically test and calculate mechanic property of specimen. It is also possible to intervene manually in the analyzing process. Automatic analyzing test results are revised according to relevant standard to improve data accuracy.

The standard accessories：

1. load sensor: USA Keli high precision sensor 20kN: 1 set

2. testing software: 64bit test board + Chinese and English interface: 1 set

3. motor control: Taiwan Delta B2 servo motor + servo driver: 1 set

4. deceleration system: Jiaoxing precision reducer: 1 set

5. drive rod: Taiwan TBI high-precision ball screw: 2 pieces

6. testing computer: Lenovo business computer + HP printer: 1 set

7. test fixture: Customize test fixture according to customer sample: 1 set

attached files: machine instructions, verification data, warranty, certificate and packing list: each 1

Standards for this equipment：

1. Tester execution standard: electronic universal tester GB/T 16491-1996, JJG475-2008;

2. General testing standard: GB/T CNS ASTM ISO DIN JIS En.

Installing and commissioning：

Information such as foundation drawing, product dimension and weight is provided to client.

Product parameter

Maximum testing force：20KN
Tester Precision level：greater than 0.5
Range of testing force：2% - 100%FS
Relative force indication deviation：±0.5% within indication
Test force resolution：±0.5% within indication
Relative deviation of displacement：±0.5% within indication
Displacement resolution：0.0005mm
Regulation range of force control rate：0.1-2%FS/S
Relative deviation of force control speed：within ±0.5% of set value
Crossbeam speed adjusting range：0.05-500mm/min
Relative deviation of crossbeam speed：0.5% within set value
Constant force, constant deformation and constant displaceme：0.5% - 100%FS
Constant force, constant deformation, constant displacement ：when set value <10%FS,it is within ±0.5% of the set value; when set value ≥10%FS, it is within ±0.1% of the set value
Maximum stretch stroke：1100mm
Effective stretching space (net space)：680mm
Effective testing width：420*420mm
Console dimension：840*500*1650mm
Power：220V 50Hz 0.75kW
Console weight：180kg
